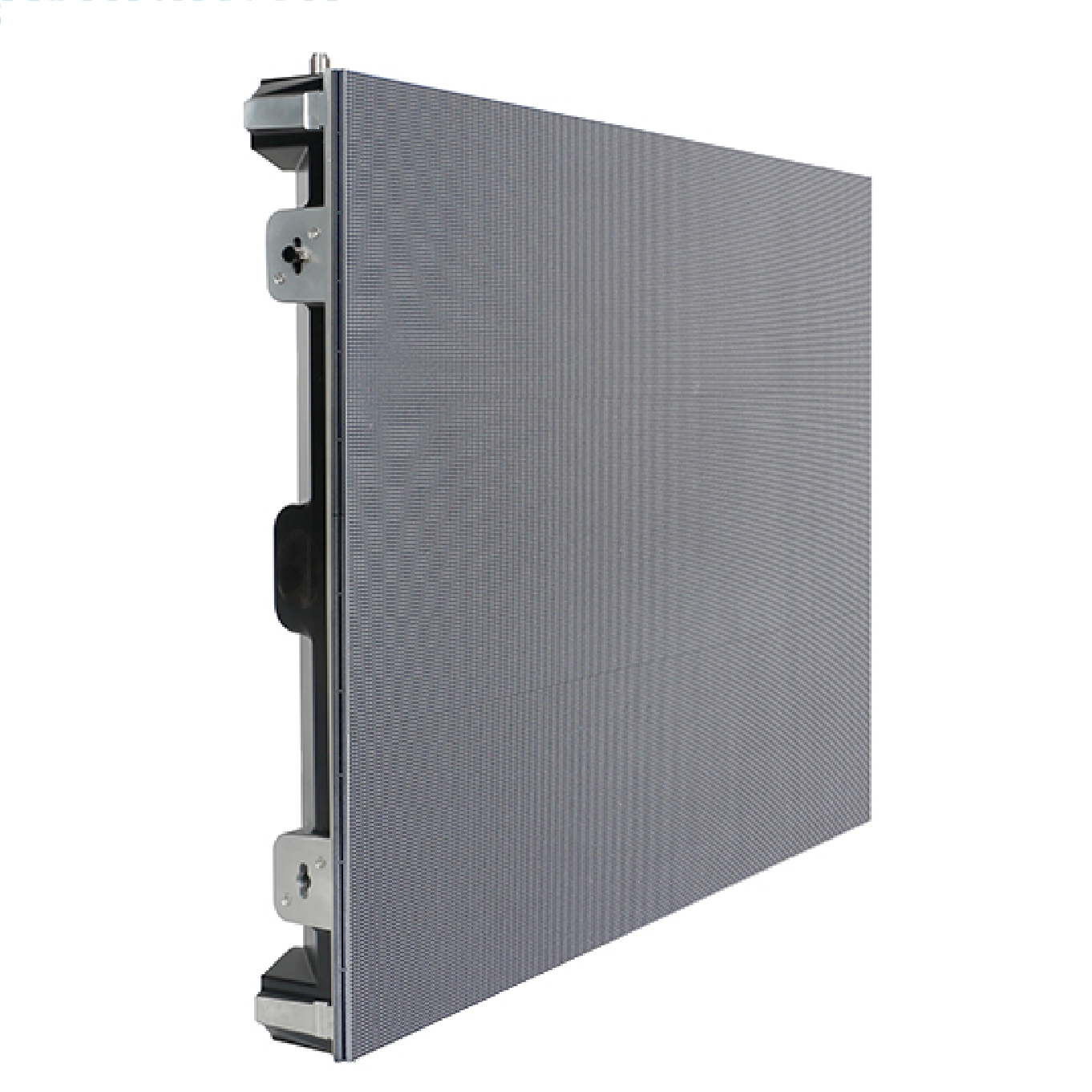

LED Fine Pitch Display — S Series
LED Fine Pitch Display — S Series
▪ True and complete front maintance, not need to reserve
repair space, save space 70%

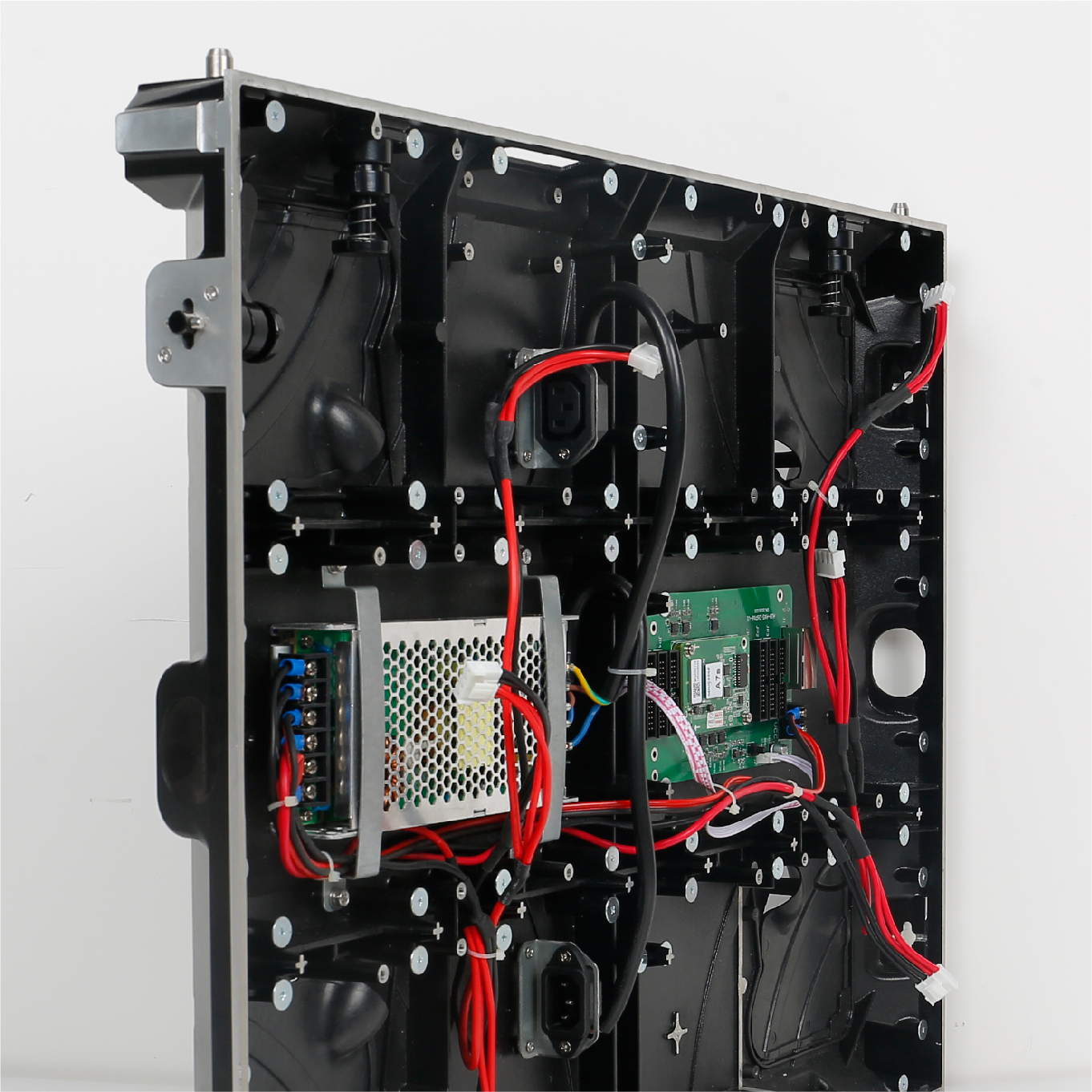

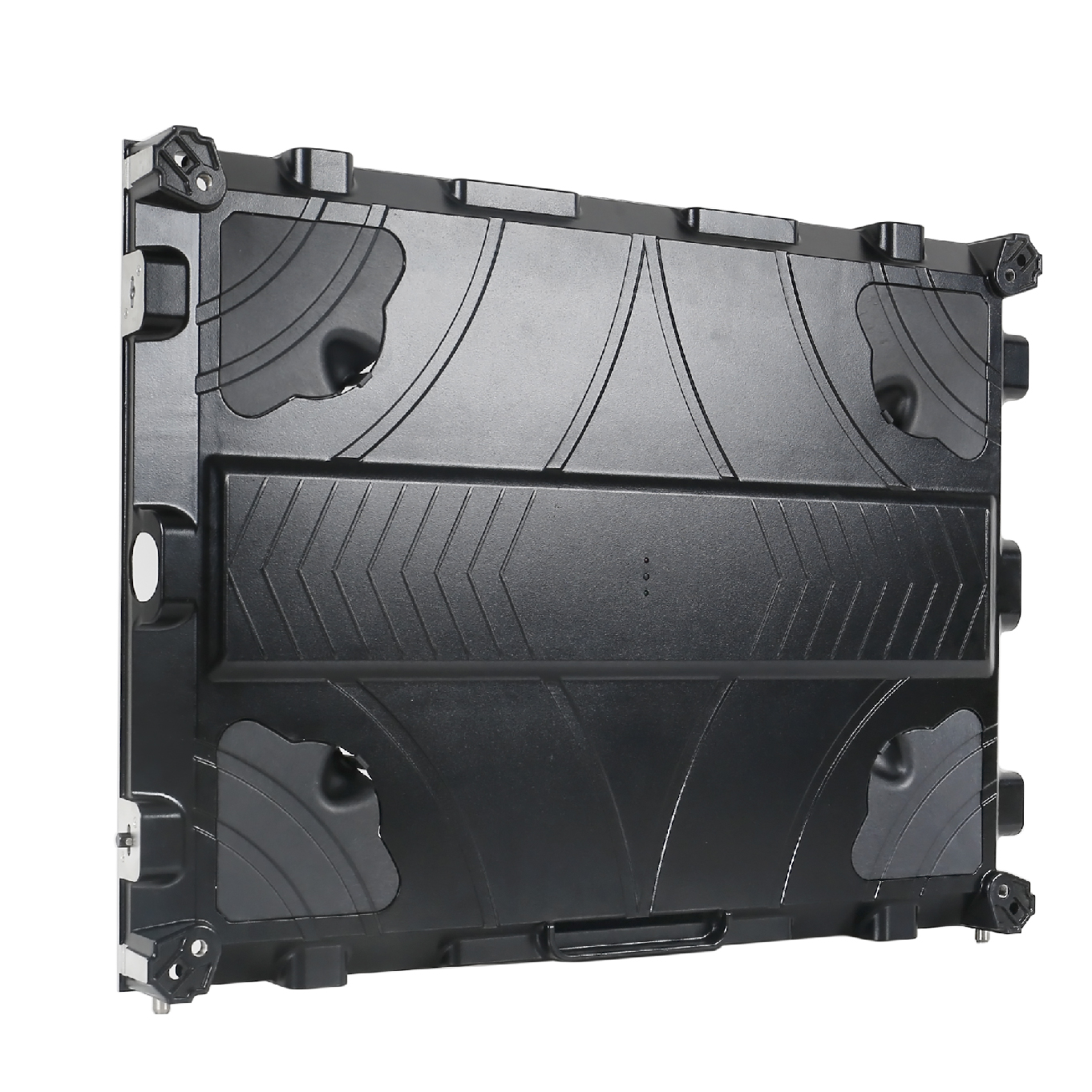

▪ Seperated structure design for cabinet and module，
can install sperately
▪ Support customized system card, power supply
Double backup
▪ Maintain only need to change module ,not need to
change cabinet
Immediately consult
Product parameters 1-1
|
LED FINE PITCH DISPLAY — S SERIES
|
|
Type Number
|
S137
|
S153
|
S166
|
S183
|
|
Product Code
|
COL.LA.137.1001
|
COL.LA.153.1001
|
COL.LA.166.1001
|
COL.LA.183.1001
|
|
Cabinet Resolution
|
464*348
|
416*312
|
384*192
|
348*174
|
|
Cabine max. power
|
250W
|
250W
|
200W
|
150W
|
|
Best Viewing Distance
|
≥1.4
|
≥1.6
|
≥1.7
|
≥1.9
|
|
Screen Brightness
|
500
|
600
|
600
|
600
|
|
Pixel Pitch
|
1.37
|
1.53
|
1.66
|
1.83
|
|
Pixel Density
|
525625
|
422500
|
360000
|
295664
|
|
LED package
|
SMD1010
|
SMD1010
|
SMD1010
|
SMD1515
|
|
Module Resolution
|
232*116
|
208*104
|
192*96
|
174*87
|
|
Module max. power
|
30
|
30
|
26
|
21
|
|
Scan Type
|
1/29
|
1/26
|
1/32
|
1/29
|
|
Refresh Frequency
|
3840
|
|
Module Size
|
320*160mm
|
|

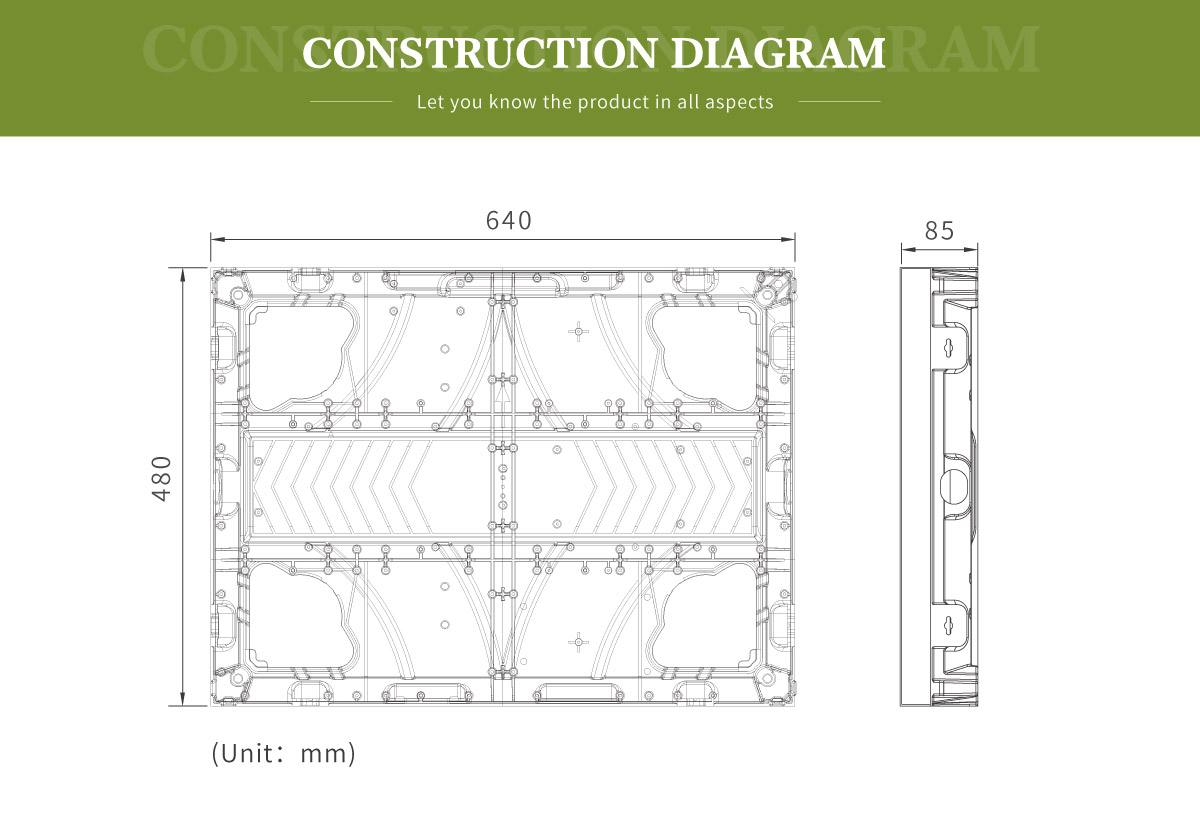

Cabinet Size
|
640*480*85mm
|
|
Cabinet Weight
|
8
|
|
Grey Scale
|
65536
|
|
Input voltage
|
AC 220V/(110V)±15%
|
|
View angle
|
140°
|
|
Maintenance Method
|
Back maintenance
|
|
Cabinet Material
|
Diecast aluminium
|
|
Protection level
|
IP30
|
|
Life span
|
≥100,000 H
|
|
Control Distance
|
LAN：100m；Optical fiber：10 km
|
Product parameters 1-2
|
LED FINE PITCH DISPLAY — S SERIES
|
|
Type Number
|
S2
|
S250
|
S307
|
S4
|
S5
|
|
Product Code
|
COL.LA.002.1001
|
COL.LA.250.1001
|
COL.LA.307.1001
|
COL.LA.004.1001
|
COL.LA.005.1001
|
|
Cabinet Resolution
|
320*240
|
256*192
|
208*156
|
160*120
|
128*96
|
|
Cabine max. power
|
140W
|
145W
|
130W
|
145W
|
132W
|
|
Best Viewing Distance
|
≥2
|
≥2.5
|
≥3
|
≥4
|
≥5
|
|
Screen Brightness
|
500
|
500
|
600
|
600
|
500
|
|
Pixel Pitch
|
2
|
2.5
|
3.07
|
4
|
5
|
|
Pixel Density
|
250000
|
160000
|
105625
|
62500
|
40000
|
|
LED package
|
SMD 1515
|
SMD 2020
|
SMD 2020
|
SMD 2020
|
SMD 2020
|
|
Module Resolution
|
160*80
|
128*64
|
104*52
|
80*40
|
64*32
|
|
Module max. power
|
23
|
24
|
21
|
24
|
22
|
|
Scan Type
|
1/20
|
1/32
|
1/26
|
1/20
|
1/16
|
|
Refresh Frequency
|
1920/3840
|
1920/3840
|
3840
|
1920
|
1920
|
|
Module Size
|
320*160mm
|
|
Cabinet Size
|
640*480*85mm
|
|
Cabinet Weight
|
8
|
|
Grey Scale
|
65536
|
|
Input voltage
|
AC 220V/(110V)±15%
|
|
View angle
|
140°
|
|
Maintenance Method
|
Back maintenance
|
|
Cabinet Material
|
Diecast aluminium
|
|
Protection level
|
IP30
|
|
Life span
|
≥100,000 H
|
|
Control Distance
|
LAN：100m；Optical fiber：10 km
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
×
![]()
