Home> Product> RENTAL & COMMERCECTAL LED DISPLAY> LED P4/P5/P6.66/P8/P10 Outdoor Display

LED Outdoor Display

LED Outdoor Display

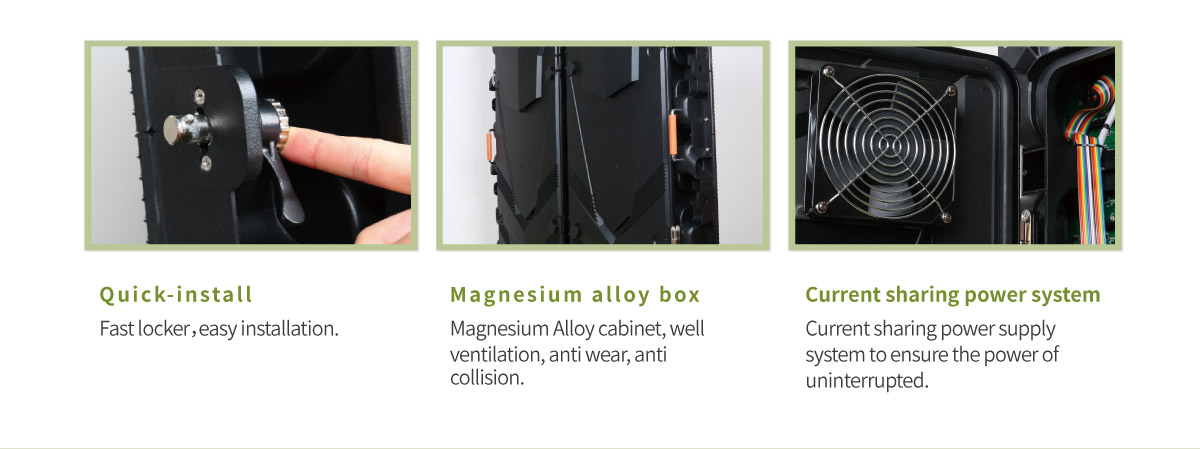

▪ Current sharing power supply system to ensure the power

  of uninterrupted

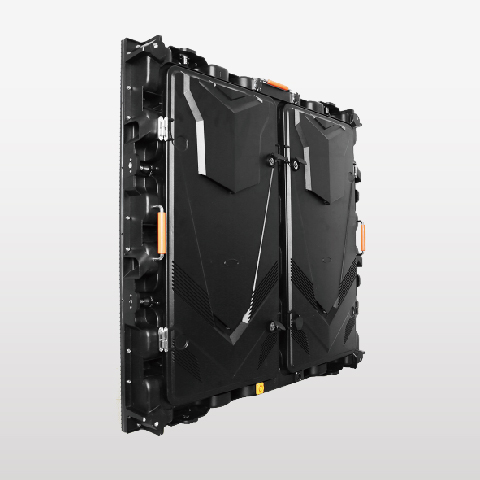

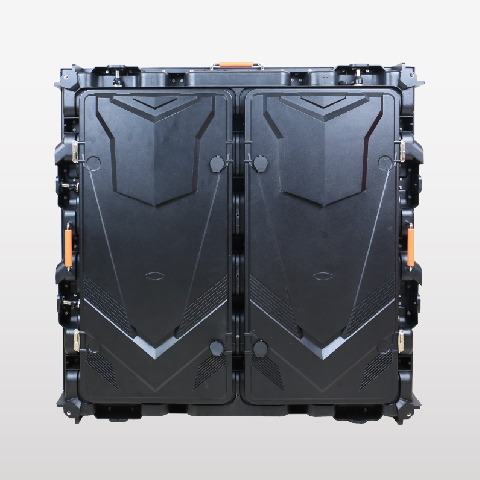

▪ Magnesium Alloy cabinet, well ventilation, anti wear,

  anti collision


▪ Strict waterproof test, guarantee of quality

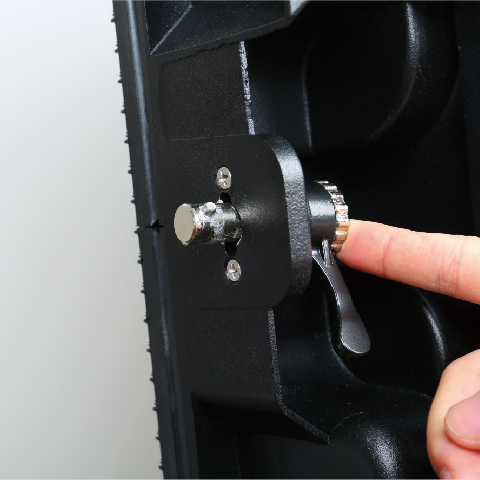

▪ Fast locker，easy installation




Immediately consult




Product parameters

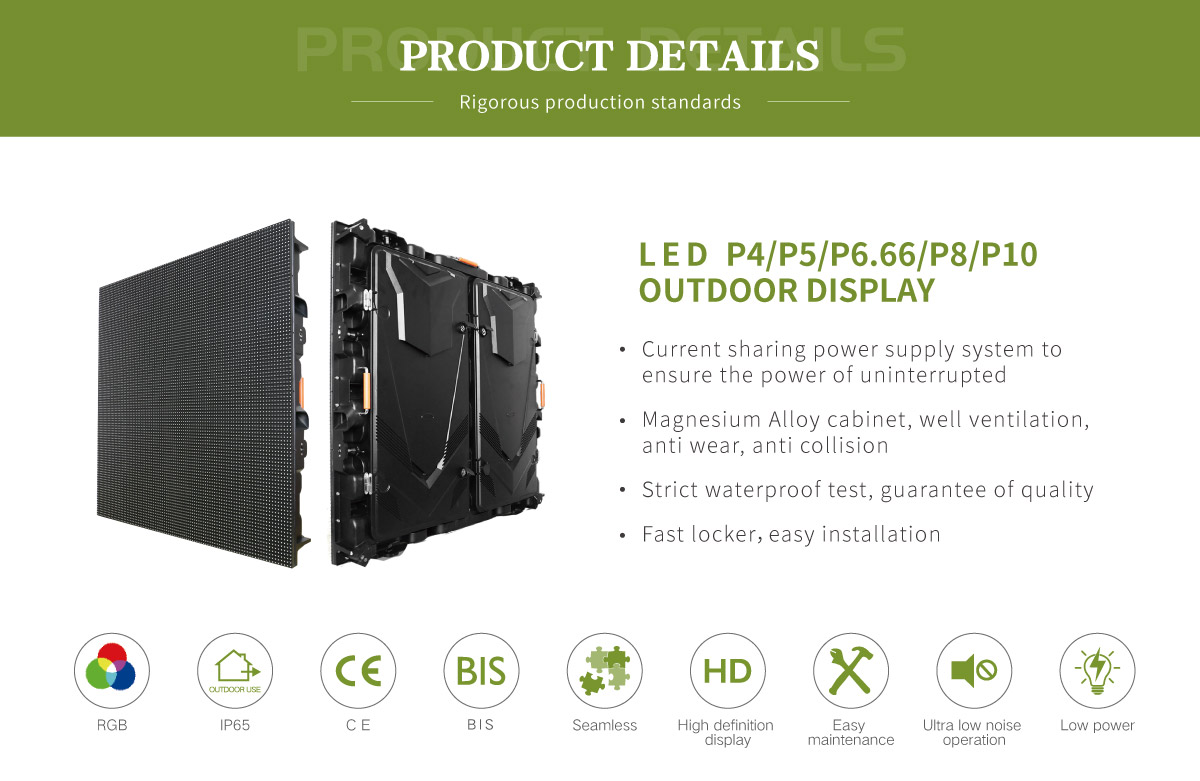

LED P4/P5/P6.66/P8/P10 OUTDOOR DISPLAY
Type Number M4 M5 M666 M8 M10
Product  Code COL.LB.004.2001 COL.LB.005.2001 COL.LB.666.2001 COL.LB.008.2001 COL.LB.010.2001
Pixel Pitch（MM） 4 5 6.66 8 10
 Pixel Density（Dot/㎡） 62500 40000 22500 15625 10000
LED Standard SMD2525 SMD2525 SMD2535 SMD2535 SMD3535
Grey Scale（bits） 14-16 12-14 12-14 12-14 12-14
Refresh Frequency（Hz） ≥3840 ≥1920 ≥1920 ≥1920 ≥1920
Screen Brightness（CD/㎡ ） ≥5000 ≥4500 ≥4500 ≥4500 ≥5500
Best Viewing Distance（M） ≥4 ≥5 ≥7 ≥8 ≥10
Screen Resolution 240*240 192*192 144*144 120*120 96*96
Cabinet Max. Power(W) 1200 900 900 600 1000
Cabinet Weight（KG） 28 26 26 26 26
Cabinet Material Magnesiume Alloy
Drive Type Constant Drive
IP Grade IP65
Life Span ≥100,000 Hours
Screen Working Voltage AC 220V/(110V)±15%
Miaintenance Method Back maintenance
Control Distance LAN：100m；Optical fiber：10 km

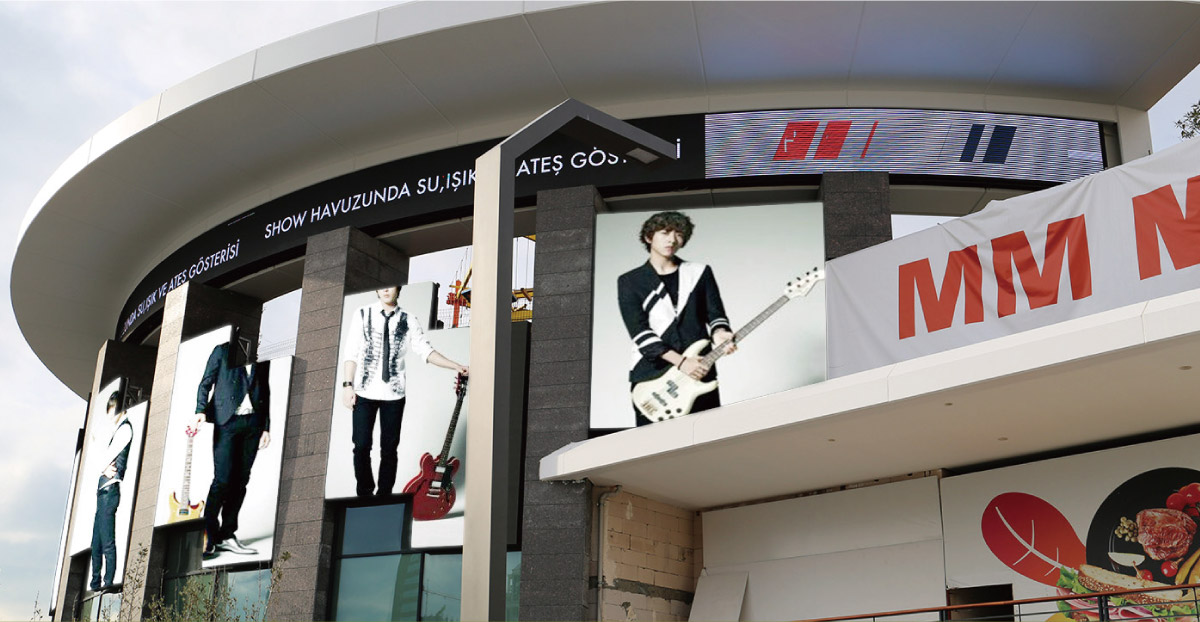

Scene case
